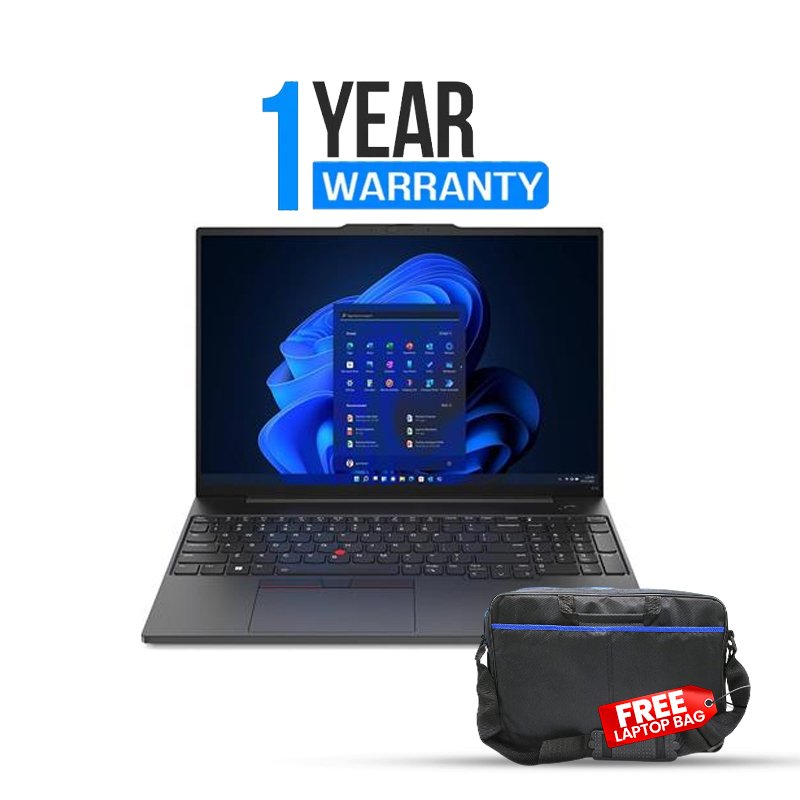

Lenovo Thinkpad E14 Gen 7

Processor

Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB

AI PC Category

AI PC

NPU

Integrated Intel® AI Boost, up to 12 TOPS

Graphics

Integrated Intel® Graphics

Chipset

Intel® SoC Platform

Memory

1x 8GB SO-DIMM DDR5-5600

Memory Slots

Models with U or H series processor: two DDR5 SODIMM slots, dual-channel capable

Max Memory

Models with Core Ultra processor and Core 7 240H processor: up to 64GB DDR5-5600

Storage

512GB SSD M.2 2242 PCIe® 4.0×4 NVMe® Opal 2.0

Storage Slot

Models with U or H series processor: two M.2 slots
• One M.2 2242 PCIe® 4.0 x4 slot
• One M.2 2280 PCIe 4.0 x4 slot

Max Storage Support

Models with U or H series processor:
up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB

Card Reader

No card reader

Audio Chip

High Definition (HD) Audio, Senary SN6147 codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN

Microphone

2x, Array

Camera

FHD 1080p + IR Hybrid with Privacy Shutter

Battery

48Wh

Power Adapter

65W USB-C® (3-pin)

Display

14″ WUXGA (1920×1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz

Touchscreen

None

Screen-to-Body Ratio

90%

Pen

Pen Not Supported

Keyboard

Backlit, English (EU)

Dimensions (WxDxH)

313 x 220.3 x 10.1/15.25 (front/rear), 19.7 (max) mm
12.32 x 8.67 x 0.40/0.60 (front/rear), 0.78 (max) inches

Weight

Starting at 1.34 kg (2.95 lbs)

Case Color

Black

Case Material

Aluminium (Top), Aluminium (Bottom)

Operating System

None

Bundled Software

None

WLAN + Bluetooth

Wi-Fi® 6E, 802.11ax 2×2 + BT5.3

WWAN

Non-WWAN

SIM Card

None

Ethernet

100/1000M (RJ-45)

NFC

None

Standard Ports

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
• 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
• 1x HDMI® 2.1, up to 4K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Ethernet (RJ-45)

Optional Ports (configured)

1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2), with USB PD 3.1 and DisplayPort™ 1.4

Docking

Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit Docking for ThinkPad E14 Gen 7 (Intel)

Security Chip

Discrete TPM 2.0 Enabled

Physical Locks

Kensington® Nano Security Slot, 2.5 x 6 mm

Smart Card Reader

None

Fingerprint Reader

Touch Style, Match-on-Chip, Integrated in Power Button

Other Security

Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
ThinkShield

System Management

Non-vPro®

Base Warranty

1-year, Courier or Carry-in

Included Upgrade

None

Bundled Accessories

Lenovo® 15.6″ Laptop Casual Toploader

Green Certifications

ErP Lot 6/26, RoHS compliant, TCO Certified 10.0

Mil-Spec Test

MIL-STD-810H military test passed

Other Certifications

TÜV Rheinland® Low Blue Light (Software Solution)
